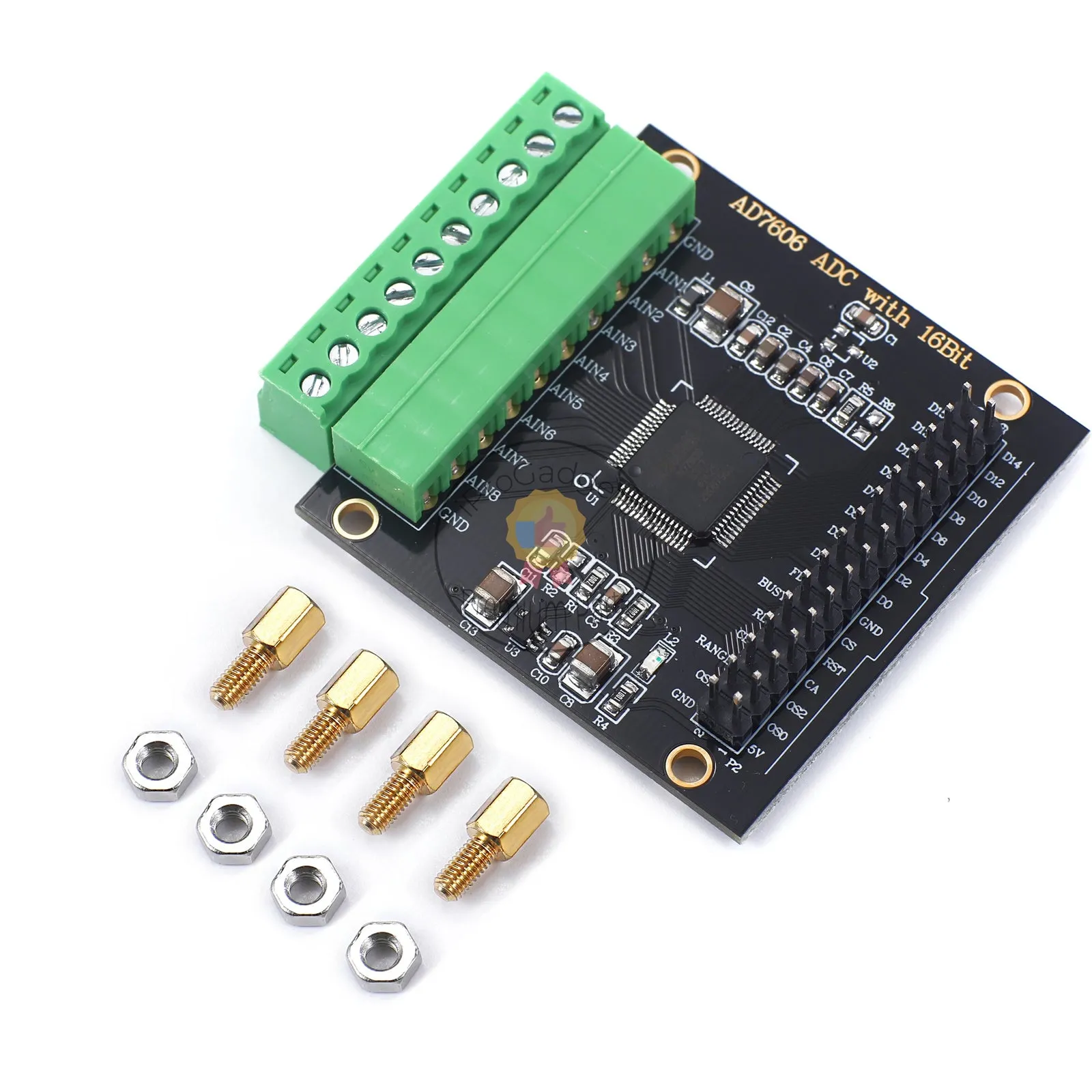

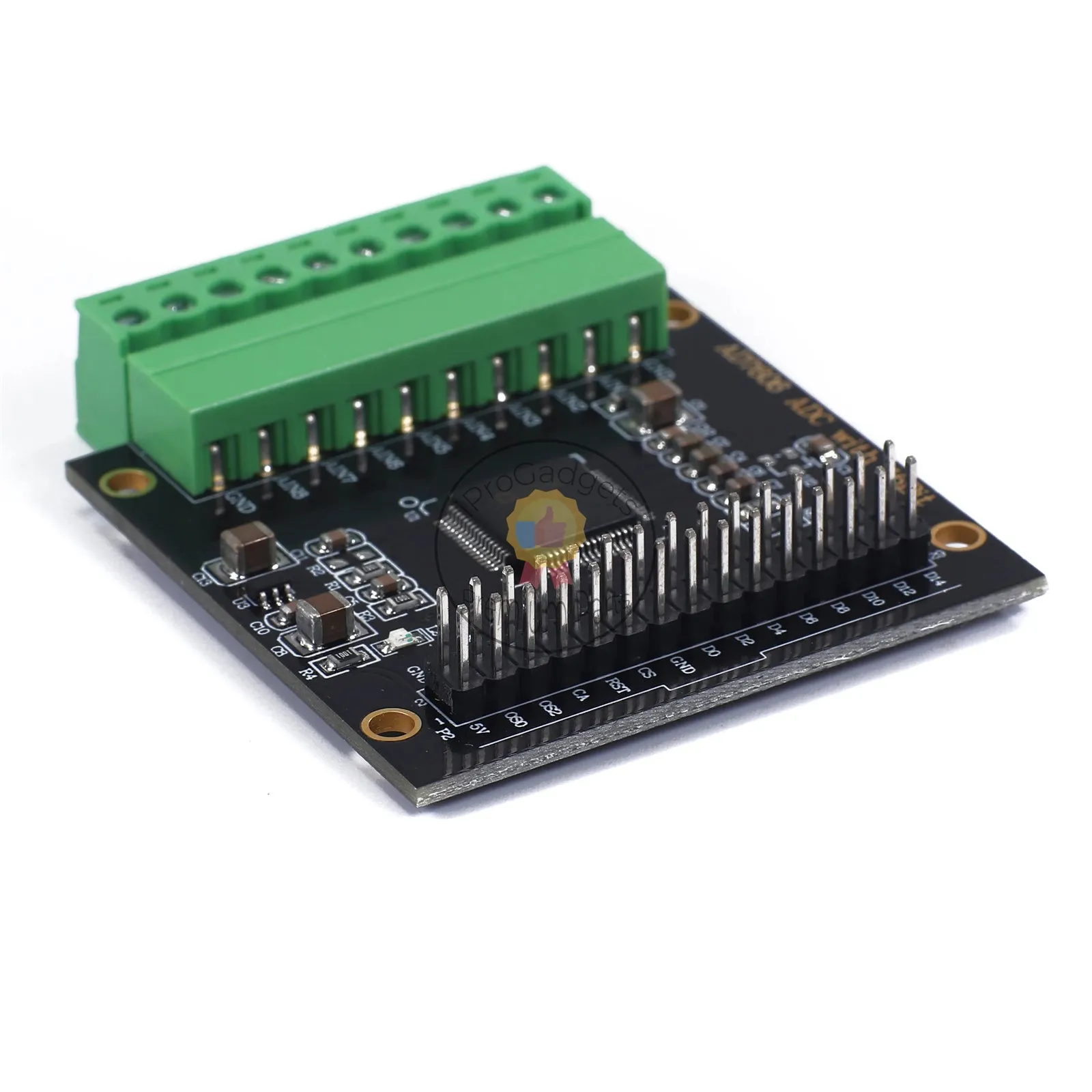

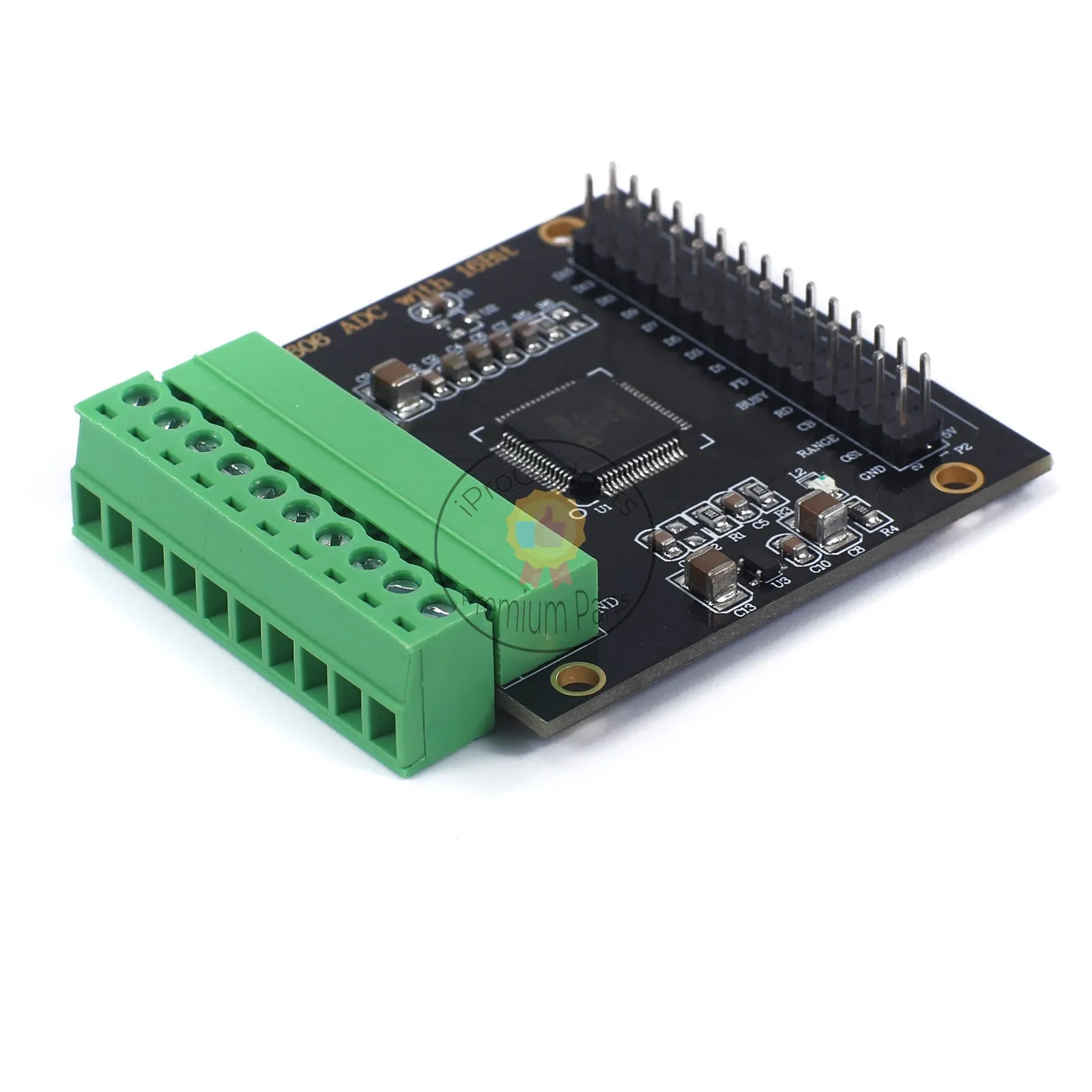

iProGadgets Repair Tools AD7606 Module Multi-channel AD Data Acquisition Module 16-bit ADC 8-channel Synchronization Sampling Frequency 200KHz
Features:
Features:
- AD7606 150W high-power multi-channel AD Data acquisition module, suitable for college students/engineers/technicians/factory personal DIY/electronic enthusiasts and other operations
- AD7606 is 16-bit,8-channel simultaneous sampling, and the sampling rate per channel can reach 200kSPS analog-to-digital data acquisition chip, built-in analog input clamp protection, second-order anti-aliasing filter wave generator, track-and-hold amplifier, 16-bit charge redistribution successive approximation ADC, digital word filter, 2.5V reference voltage source, reference voltage buffer, and high-speed serial and parallel line interface
- Powered by a single 5V power supply, with on-chip filtering and high input impedance, due to no need to drive an operational amplifier and external bipolar power supply
- 3dB of anti-aliasing filter, the cut-off frequency is 22 kHz; when the sampling rate is 200kSPS, it has 40 dB impedance aliasing suppression characteristics; input clamp protection circuit to ensure that the input withstand voltage of 16.5V
- Can be applied to power line monitoring and protection, multi-phase motor control, instrumentation and control, multiple axis positioning, data acquisition, and other systems
- Model: AD7606
- Type: Analog-to-digital conversion module
- Power supply: DC 5V
- Current: 20mA(Max)
- Communication protocol: SPI serial, 8-channel data parallel
- Mode center provides routines: STM32F103RBT6
- Routine platform: STM32F103X-M3
- Control signal level: 3.3V
- Input voltage range: ±5V or ±10V
- Input resistance: 1M Euro
- ADC resolution bits: 16 bits
- Sampling Rate: 200K SPS
- Number of input channels: 8-channel independent
- Input interface: 3.81--8PIN terminal
- The reference voltage: Internal 2.5V
- Oversampling mode: 6pieces
- Output mode: 8-channel data serial or parallel
- Features: Many kinds
- Application: Many kinds
- Weight: 23g
- Size 50*50*12mm
- Interface type: 3.81-10PIN socket, XH2.54 double row of needles, according to the interface
- 1 x Module
