This Authentic Columbus P-7 Pro is a high-performance dual-band GNSS antenna for L1 and L5 frequencies, offering superb reception across multiple constellations. With an IP67 waterproof rating and operational from -40°C to 85°C, it excels in extreme conditions, ensuring precise location tracking for demanding applications.

Technical Specifications:

Frequency Support:

• GPS: L1C/A (1575.42MHz), L5 (1176.45MHz)
• BeiDou: B1I (1561.098MHz)
• Galileo: E1-B/C (1575.42MHz), E5a (1176.42MHz)
• GLONASS: L1OF (1602MHz)
• QZSS: L1C/A (1575.42MHz), L5 (1176.45MHz)
• IRNSS: L5 (1176.45MHz)
• SBAS: EGNOS, GAGAN, MSAS, WAAS, QZSS L1S

Electrical Parameters:

• Gain: 28dB (L1 band), 23dB (L5 Band)
• Noise Figure: <1.5dB
• Impedance: 50Ω
• V.S.W.R (Voltage Standing Wave Ratio): <2.0
• Axial Ratio: <3dB
• Supply Voltage: DC 3.3~5V
• Current Consumption: <14mA
• Polarization: RHCP (Right-Hand Circular Polarization)
• Feed Points: Single

Mechanical Specifications:

• Connector Type: SMA Male
• Radome Material: ABS
• Mounting Method: Magnet

Environmental Conditions:

• Operating Temperature Range: -40°C to 85°C
• Relative Humidity: Up to 95%
• Ingress Protection Rating: IP67

Dimension (mm):

Weight:

• 118 grams (4.2 ounces)

Size and Weight:

Package content:

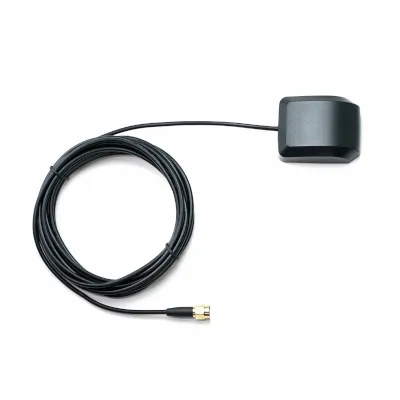

• Columbus P-7 Pro Antenna Main Unit with Integrated 3-Meter Cable  -SMA connector (male)
