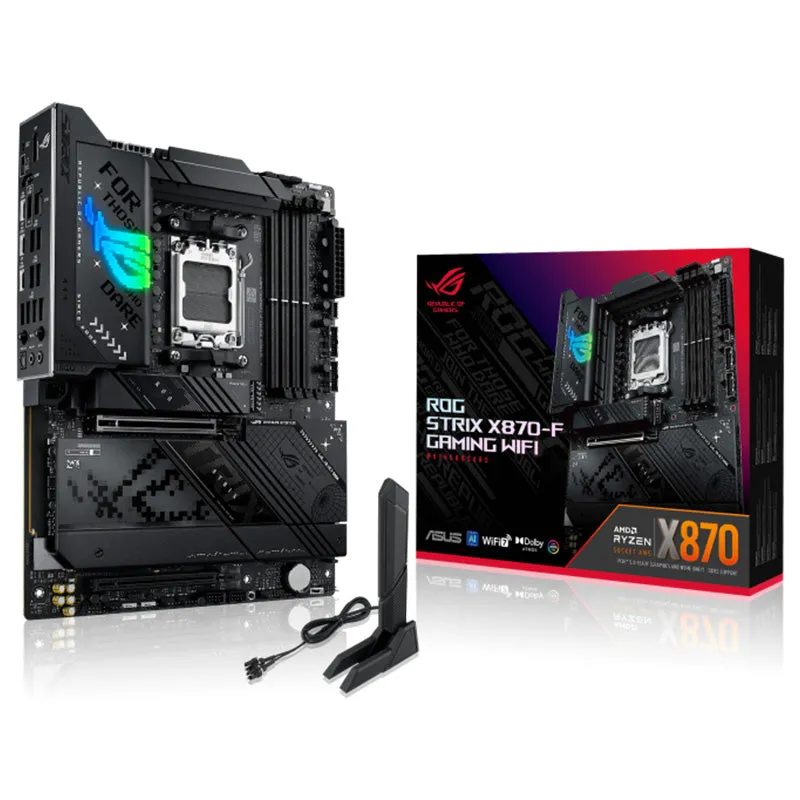

Name: Asus ROG Strix X870-F Gaming WiFi AM5 ATX Motherboard (ROG STRIX X870-F GAMING WIFI)
SKU: 2337357

Product Details ＋

SPECIFICATIONS:

CPU:
- AMD Socket AM5 for AMD Ryzen™ 9000, 8000 & 7000 Series Desktop Processors*
- * Refer to for CPU support list.

Chipset:
- AMD X870 Chipset

Memory:
- 4 x DIMM slots, max. 192GB, DDR5
- Supports up to 8000 MT/s(OC) with Ryzen™ 9000, 8000 & 7000 Series Processors
- ECC & Non-ECC, Un-buffered DIMM*
- Dual channel memory architecture
- Supports AMD Extended Profiles for Overclocking (EXPO™)
- ASUS Enhanced Memory Profile (AEMP)
- * Memory support varies; check CPU/memory configuration at

Graphics:
- 1 x HDMI™ port (supports 4K@60Hz, HDMI 2.1)
- 2 x USB4® (40Gbps) ports supporting USB Type-C® display output (max. 4K@60Hz, DisplayPort 1.4a)
- * Graphics specifications depend on CPU.

Expansion Slots:
- AMD Ryzen™ 9000 & 7000 Series Desktop Processors: 1 x PCIe 5.0 x16 slot (x16 mode)
- AMD Ryzen™ 8000 Series Desktop Processors: 1 x PCIe 4.0 x16 slot (x8/x4 mode)
- AMD X870 Chipset: 3 x PCIe 4.0 x16 slots (x1 mode)
- * Check PCIe bifurcation table at

Storage:
- 4 x M.2 slots & 2 x SATA 6Gb/s ports
- M.2_1 (PCIe 5.0 x4, type 2280) for Ryzen™ 9000 & 7000
- M.2_1 (PCIe 4.0 x4, type 2280) for Ryzen™ 8000
- M.2_2 (PCIe 4.0 x4, type 2242/2260/2280)
- M.2_3 (PCIe 4.0 x4, type 2280)
- M.2_4 (PCIe 3.0 x2, type 2280)
- * PCIe/SATA RAID supported, RAID 5 for Ryzen™ 9000 only.

Ethernet:
- 1 x Realtek 2.5Gb Ethernet
- ASUS LANGuard

Wireless & Bluetooth:
- Wi-Fi 7 (2x2 Wi-Fi 7, 802.11be)
- Supports 2.4/5/6GHz bands, 160MHz bandwidth, up to 2.9Gbps
- Bluetooth® v5.4
- * Wi-Fi 7 support depends on OS; Windows 11 24H2 required for full features.

USB Ports:
- Rear: 2 x USB4 (40Gbps Type-C), 1 x USB 10Gbps (Type-A), 3 x USB 5Gbps (Type-A), 4 x USB 2.0 (Type-A)
- Front: 1 x USB 10Gbps (Type-C), 1 x USB 5Gbps (header for 2 ports), 2 x USB 2.0 (headers for 4 ports)

Audio:
- Realtek 7.1 Surround Sound High Definition Audio CODEC
- Supports Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
- * 7.1 Surround Sound requires an HD audio module.

Back Panel I/O:
- 2 x USB4 (40Gbps Type-C)
- 1 x USB 10Gbps (Type-A)
- 3 x USB 5Gbps (Type-A)
- 4 x USB 2.0 (Type-A)
- 1 x HDMI™ port
- 1 x Wi-Fi module
- 1 x Realtek 2.5Gb Ethernet port
- 3 x Audio jacks
- 1 x BIOS FlashBack™ button

Internal I/O Connectors:
- 1 x 4-pin CPU Fan header, 1 x 4-pin CPU OPT Fan header, 1 x 4-pin AIO Pump header, 4 x 4-pin Chassis Fan headers
- 1 x 24-pin Main Power connector, 2 x 8-pin 12V CPU Power connectors
- 4 x M.2 slots (Key M), 2 x SATA 6Gb/s ports
- 1 x USB 10Gbps (Type-C), 1 x USB 5Gbps (header for 2 ports), 2 x USB 2.0 (headers for 4 ports)
- 3 x Addressable Gen 2 headers, 1 x Clear CMOS header, 1 x COM Port header, 1 x Front Panel Audio header, 1 x S/PDIF Out header
- 1 x SPI TPM header (14-1 pin), 1 x System Panel header

Special Features:
- ASUS 5X PROTECTION III (DIGI VRM, LANGuard, Overvoltage protection, SafeSlot, Stainless-steel back I/O)
- ASUS Q-Design (M.2 Q-Latch, PCIe Slot Q-Release, Q-Antenna, Q-Dashboard, Q-DIMM, Q-LED Core, Q-Slot)
- ASUS Thermal Solution (Flexible M.2 heatsink, VRM heatsink design)
- ASUS EZ DIY (BIOS FlashBack™ button & LED, ProCool, Pre-mounted I/O shield, SafeSlot)
- Aura Sync (Addressable Gen 2 headers)

Software Features:
- ASUS Exclusive Software: Armoury Crate (Aura Creator, Aura Sync, Fan Xpert 4, Power Saving), ASUS DriverHub, ASUS GlideX, TurboV Core, ASUS CPU-Z
- Norton 360 Deluxe (60 Days Free Trial), WinRAR (40 Days Free Trial)
- UEFI BIOS: ASUS EZ DIY (CrashFree BIOS 3, EZ Flash 3, UEFI BIOS EZ Mode, MyHotkey)

Remote Management:
- ASUS Control Center Express (ACCE)

BIOS:
- 256 Mb Flash ROM, UEFI AMI BIOS

Manageability:
- WOL by PME, PXE

Accessories:
- 2 x SATA 6Gb/s cables, 1 x ASUS WiFi Q-Antenna, 1 x M.2 rubber package, 2 x M.2 SSD screw packages
- 1 x ACC Express Activation Key Card, 1 x Quick Start Guide

Operating System:
- Windows 11

Form Factor:
- ATX (12 inch x 9.6 inch / 30.5 cm x 24.4 cm)

CPU

AMD Socket AM5 for AMD Ryzen™ 9000, 8000 & 7000 Series Desktop Processors*
* Refer to for CPU support list.

Chipset

AMD X870

Memory

4 x DIMM slots, max. 192GB, DDR5
Supports up to 8000 MT/s(OC) with Ryzen™ 9000, 8000 & 7000 Series Processors
ECC & Non-ECC, Un-buffered Memory*
Dual channel memory architecture
Supports AMD Extended Profiles for Overclocking (EXPO™)
ASUS Enhanced Memory Profile (AEMP)
* Supported memory types & speeds vary based on CPU. Check support list at .

Graphics

1 x DisplayPort**
1 x HDMI™ port***
2 x USB4® (40Gbps) ports supporting USB Type-C® display output****
* Graphics specifications depend on CPU.
** Supports max. 8K@30Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.
**** Supports max. 4K@60Hz as specified in DisplayPort 1.4a.

Expansion Slots

AMD Ryzen™ 9000 & 7000 Series Desktop Processors: 1 x PCIe 5.0 x16 slot (x16 mode)
AMD Ryzen™ 8000 Series Desktop Processors: 1 x PCIe 4.0 x16 slot (x8/x4 mode)**
AMD X870 Chipset: 1 x PCIe 4.0 x16 slot (x4 mode)
* Check PCIe bifurcation table at .

Storage
