Product Details
＋
Canon EOS R3 Full-Frame Mirrorless Camera
MFR SKU: 4895C002 | Helix SKU: CA4895C002
Overview
EOS R3
Building on the success of the EOS R series of cameras and leveraging advancements in technology that have come along since, the EOS R3 combines some of the best of both the EOS R5 and EOS-1D X Mark III cameras to provide a robust, high-performance camera.* The EOS R3 is the first 3 series camera since the popular EOS-3 film camera launched in 1998.
At the heart of the EOS R3 is a Canon developed 24.1 megapixel back-illuminated stacked CMOS sensor which combines with the DIGIC X processor to deliver a higher speed readout, allowing for continuous blackout-free shooting** at up to 30 fps in electronic (silent) shutter mode with minimum rolling distortion. The combination also increases the high sensitivity light capturing efficiency of a native ISO of 102400 for still images. The improved Dual Pixel CMOS AF II with 1,053 AF Points features evolved EOS iTR tracking for subjects such as people, animals, as well as select cars and motorcycles2 down to EV -7.5. The EOS R3 also allows the user multiple ways of controlling AF using Eye Control AF, Smart Controller with home position and the classic multi-controller. The camera also includes a new multi-function hot shoe which alleviates the need for extra batteries and cables in accessories such as microphones and flash transmitters. The EOS R3 also includes flexible connectivity options with built-in wired LAN, GPS, USB, Wi-Fi and Bluetooth.
The Canon EOS R3 is designed to satisfy the most demanding expectations in a camera emphasizing speed, performance, and reliability.
Features:
• High Image Quality with a Back-illuminated Stacked 24.1 Megapixel Full-frame CMOS Sensor.
• DIGIC X Image Processor with an ISO range of 100-102400; Expandable to 204800.1
• High-speed continuous shooting of up to approx. 30 fps with electronic (silent) shutter and up to 12fps with Mechanical Shutter.
• Improved Dual Pixel CMOS AF with 1,053 AF Points featuring Vehicle Detection as well as Eye, Face, Head, and Animal Detection.2
• The First EOS Digital camera to feature Eye Control AF.

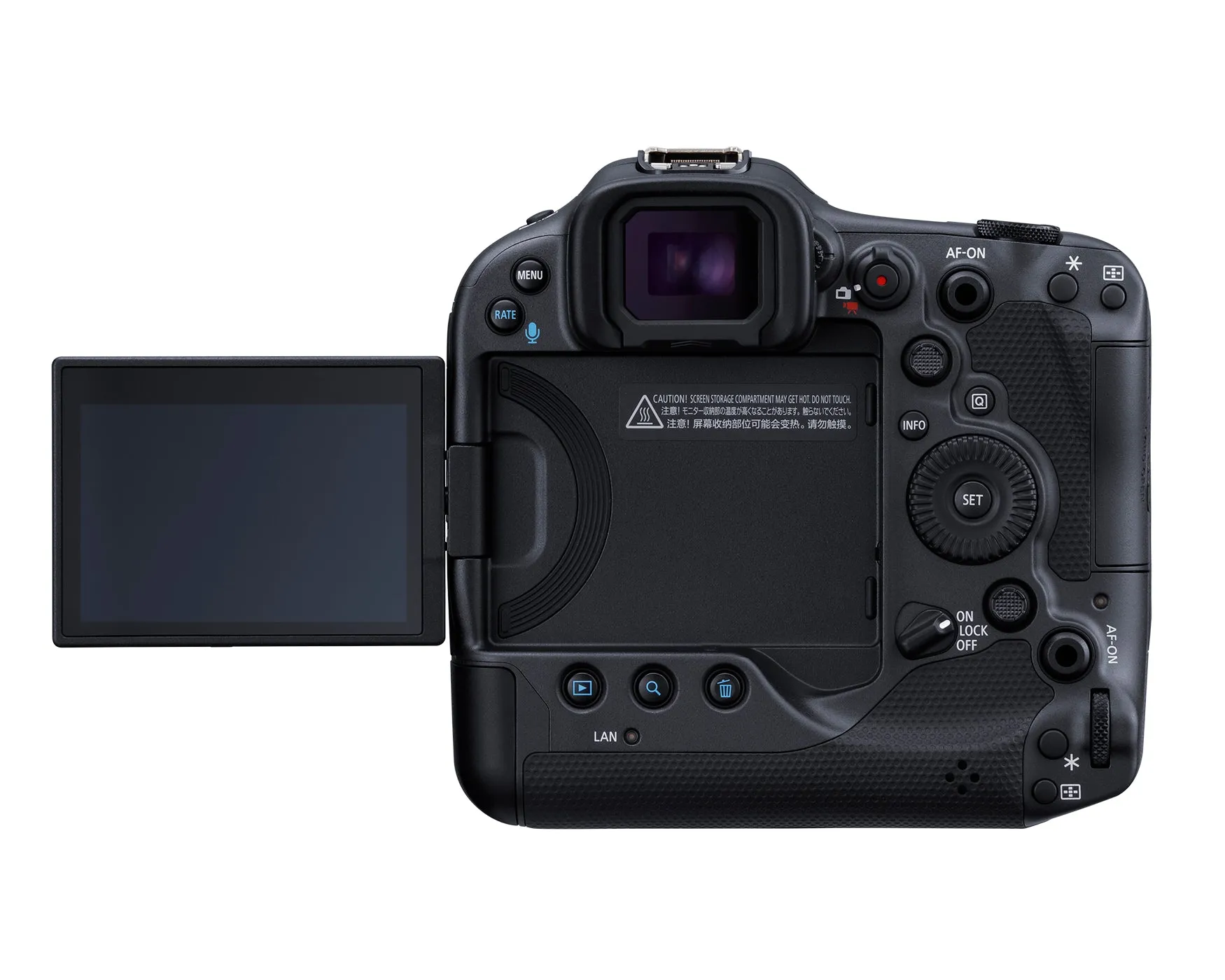

• 5.76-million-dot & 120fps blackout free EVF with quick response3 , as well as a Vari-Angle Touchscreen.
• Capable of recording 6K 60P RAW or 4K 120p 10-bit (uncropped) with Canon Log 3.

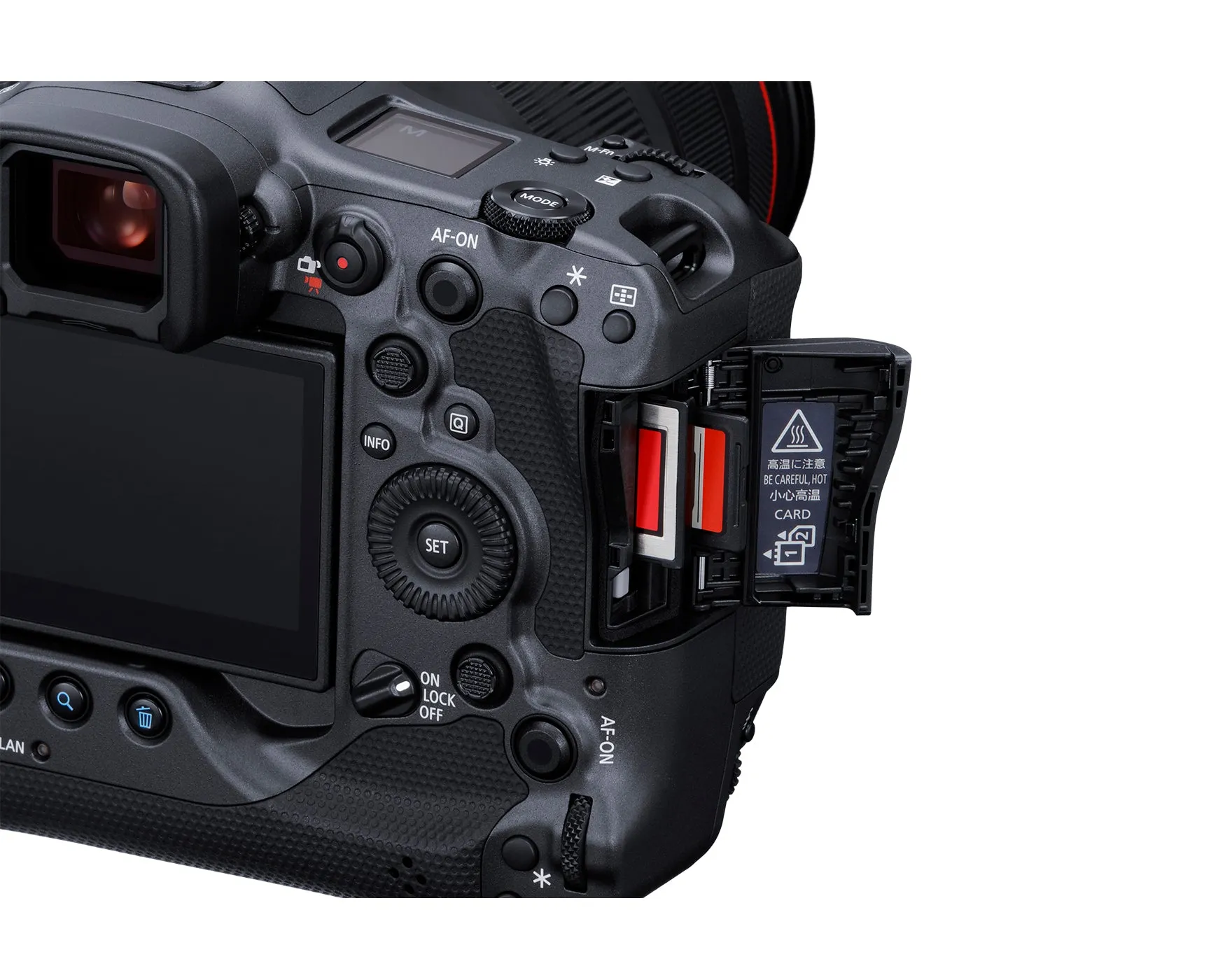

• Dual Card Slots for CFexpress and UHS-II SD Memory Cards.
• Next Generation Multi-Function Shoe plus Speedlite EL-1 synchronization.
• Enhanced Connectivity.
• Enhanced Operating Controls and Accessories.
• Dust and drip resistance equal to the EOS-1D X Series
Specifications
Specifications
| Type | Digital single-lens non-reflex AF/AE camera |
| Image Processor | DIGIC X |
| Recording Media | CFexpress card • Type B: Card slot SD card • SD card speed class-compatible. • Compatible with UHS-II • Eye-Fi cards and Multimedia cards (MMC) are not supported. |
| Compatible Lenses | Canon RF lens group When using Mount Adapter EF-EOS R: Canon EF or EF-S lenses (excluding EF-M lenses) |
| Lens Mount | Canon RF mount |
Image Sensor
| Type | Full-frame back-illuminated stacked CMOS sensor (compatible with Dual Pixel CMOS AF) |
| Effective Pixels | Approx. 24.1 megapixels |
| Sensor Size | Approx. 36.0 x 24.0 mm |
| Pixel Size | Approx. 6.00 µm square |
| Total Pixels | Approx. 26.7 megapixels |
| Aspect Ratio | 3:2 (Horizontal: Vertical) |
| Color Filter System | RGB primary color filters |
| Low Pass Filter | Installed in front of the image sensor, non-detachable |
| Dust Deletion Feature |
(1) Self Cleaning Sensor Unit • Removes dust adhering to the low-pass filter. • At power off only / Enable / Disable. Performed automatically (taking about approx. 2 sec. as indicated on the screen) or manually (taking about approx. 8 sec. as indicated on the screen). • After manually activated cleaning, the camera will automatically restart (Power OFF to ON). • When [Multi Shot Noise Reduction], [Multiple exposures], or [HDR mode] is set, [Clean now] and [Clean manually] cannot be selected. (2) Dust Delete Data acquisition and appending • The coordinates of the dust adhering to the low-pass filter are detected by a test shot and appended to subsequent images. • The dust coordinate data appended to the image is used by the EOS Canon Digital Professional Software (v. 4.14 and higher) to automatically erase the dust spots. • Not available with EF-S lenses, in cropped shooting or multi-exposure shooting. (3) Manual cleaning (by hand) |
Recording System
| Recording Format | Compliant to Design rule for Camera File system 2.0 and Exif 2.31*. *Supports time difference information |
| Image Format | JPEG, HEIF, RAW (CR3, 14 bit RAW format), C-RAW (Canon original); Movies: ALL-I, IPB (Std.), IPB (Light), RAW (Std.), RAW (Light) |
| HDR Mode-Continuous Shooting |
(1) 1 shot only (2) Continuously (3) Multiple Exposure |
| Advanced Shooting Operations |
(1) Focus Bracketing (2) Interval Timer (3) Bulb Timer (4) Multi-Shot NR |
| File Size |
3:2 Aspect Ratio Large/RAW/C-RAW: 6000 x 4000 Medium: 3984 x 2656 Small 1: 2976 x 1984 Small 2: 2400 x 1600 1.6x (Crop)* Large/RAW/C-RAW: 3744 x 2496 Small 2: 2400 x 1600 4:3 Aspect Ratio Large: 5328 x 4000 Medium: 3552 x 2664 Small 1: 2656 x 1992 Small 2: 2112 x 1600 RAW/C-RAW: 6000 x 4000 16:9 Aspect Ratio Large: 6000 x 3368 Medium: 3984 x 2240 Small 1: 2976 x 1680 Small 2: 2400 x 1344 RAW/C-RAW: 6000 x 4000 1:1 Aspect Ratio Large: 4000 x 4000 Medium: 2656 x 2656 Small 1: 1984 x 1984 Small 2: 1600 x 1600 RAW/C-RAW: 6000 x 4000 •Values for Recording Pixels are rounded to the nearest 100,000. •RAW/C-RAW images are generated in [3:3], and the set aspect ration is appended. •JPEG images are generated in the set aspect ratio. •These aspect rations (Medium / Small 2 / Small 2) and pixel counts also apply to resizing. * Effective lens focal length 1.6x marked focal length |
| File Numbering |
The following file numbers can be set: 1. File numbering methods a. Continuous numbering i. The numbering of captured images continues even after you replace the card. b. Auto reset i. When you replace or format the card, the numbering will be reset to start from 0001. If the new SD card already contains images, the numbering will continue from the last recorded image in the card. 2. Manual reset a. Resets the file number to 0001, and creates a new folder automatically. * When manually resetting the file number, folders can also be renamed. |
| RAW JPEG / HEIF Simultaneous Recording | Simultaneous recording of any combination of RAW/C-RAW and JPEG/HEIF image-recording quality is supported. |
| Color Space | Selectable between sRGB and Adobe RGB |
| Picture Style |
(1) Auto (2) Standard (3) Portrait (4) Landscape (5) Fine Detail (6) Neutral (7) Faithful (8) Monochrome (9) User Defined 1–3 • In Scene Intelligent Auto, [Auto] will be set automatically. • [Standard] is the default setting for [User Def. 1–3]. |
White Balance
| Settings |
(1) Auto (Ambience priority/White priority) (2) Daylight (3) Shade (4) Cloudy* (5) Tungsten light (6) White fluorescent light (7) Flash (8) Custom (Custom WB) (9) Color temperature (user-set from 2500K ~ 10000K) * Effective also in twilight and sunset. |
| Auto White Balance | Option between ambience priority and white priority settings. |
| White Balance Shift |
Blue/amber bias: ±9 levels Magenta/green bias: ±9 levels * Shifted from the color tempurate of the current WB mode. * Blue/amber and magenta/green shift can be set at the same time. |
Viewfinder
| Type | OLED color electronic viewfinder; approx. 5.76 million dots resolution |
| Coverage | Approx. 100% vertically and horizontally relative to the shooting image area (with image quality L, at approx. 23mm eyepoint). |
| Magnification / Angle of View | Approx. 0.76x / Approx. 35.7 degrees (with 50mm lens at infinity, -1 m-1) |
| Eye Point | Approx. 23mm (at -1 m-1 from the eyepiece lens end) |
| Dioptric Adjustment Range | Approx. -4.0 to 2.0 m-1 (dpt) |
| Viewfinder Information |
(1) Maximum burst (2) Possible shots/Sec. until self-timer shoots (3) Focus Bracketing/ Multiple-exposure/HDR shooting/Multi Shot Noise Reduction/Bulb time/Interval timer (4) Shooting mode (5) AF area (6) AF operation (7) Card (8) Image quality (9) Drive mode (10) Metering mode (11) Accessory compatible with the multi-function shoe attached (12) No. of remaining shots for focus bracketing, multiple exposures, or interval timer (13) Movie recording time available (14) Battery level (15) Image Stabilizer (IS mode) (16) Histogram (Brightness/RGB) (17) Set AF point to center (18) Quick Control button (19) Anti-flicker shooting (20) White balance/White balance correction (21) Picture style (21) Auto Lighting Optimizer (22) Subject to deter (23) Still photo cropping / Aspect ratio (24) Wi-Fi® signal strength (25) Bluetooth® function (26) Electronic level (27) AF point (Flexible Zone AF 1) (28) Wi-Fi® function (29) Airplane mode (29) AEB/FEB (30) View Assist (31) HDR PQ (32) Flash ready / FE lock / High-speed sync (33) Electronic shutter (34) Touch shutter / Create folder (35) AE lock (36) Shutter speed / Multi-function lock warning (37) Aperture value (38) Overheating warning (39) Still photo image quality warning (40) Focal length (41) Display simulation (42) Magnify button (43) ISO speed (44) Highlight tone priority (45) Exposure compensation (46) Exposure level indicator |
Autofocus
|
Focus Method |
Dual Pixel CMOS AF | ||||||||||
|
Number of AF Zones Available for Automatic Selection |
AF area: Horizontal: Approx. 100% x Vertical: Approx. 100% Stills: Max. 1053 zones (39 x 27) Movies: Max. 819 zones (39 x21) |
||||||||||
| Focusing Brightness Range (Still Photos) |
EV -7.5 to 20 (f/1.2 lens*, center AF point, One-Shot AF, at 73°F/23°C, ISO 100) * Except RF lenses with a Defocus Smoothing (DS) coating. |
||||||||||
| Focusing Brightness Range (In Movie Recording) |
EV -4.5 to 20 (f/1.2 lens*, center AF point, One-Shot AF,at 73°F/23°C, ISO 100, and 29.97 fps.) * Except RF lenses with a Defocus Smoothing (DS) coating. |
||||||||||
| AF Area |
• Except when Whole are AF is used, a dot is displayed in the center of any AF Area (or Flexible Zone AF area) in the center of the screen. • In still photo shooting, regardless of the AF area setting when Servo AF is used with [Subject Tracking: On] set, AF is performed using [Whole area AF]. [Subject Tracking: Off] should be set if users wish AF to be performed at their preferred position when Aervo AF is used, as on previous models. |
||||||||||
| Subject to Detect | People, Animals, Vehicles, No Priority | ||||||||||
| Eye Control |
On / Off • The area where eye control is supported corresponds to the area in the viewfinder's field of view available for AF (AF Area) • Eye control is not available during magnified display or manual focusing. (The focus guide frame can be moved.) • • If users move their eye away from the viewfinder, when their line of sight is not detected, subject detection and focusing is based on [Subject to detect] and [AF area] |
||||||||||
Exposure Control
| Metering Modes |
Real-time metering with image sensor (384 zones [24x16 zone metering]) (1) Evaluative metering (2) Partial metering (approx. 5.9% of the area at the center of the screen) (3) Spot metering (approx. 2.9% of the area at the center of the screen) (4) Center-weighted average metering |
||||
| Metering Range | EV -3 – 20 (at 73°F/23°C, ISO 100) (Still Photo Shooting) | ||||
| ISO Speed Range | Please for full downloadable pdf specifications | ||||
| Metering Range | EV -3 – 20 (at 73°F/23°C, ISO 100) (Still Photo Shooting) | ||||
| Exposure Compensation |
|
||||
| AE Lock |
(1) Auto AE lock • (via C.Fn Menu #2 — AE lock meter. mode after focus) AE is locked after completion of One-Shot AF, in user's choice of Evaluative, Partial, Spot, and/or Center-weighted metering. (2) Manual AE lock • Use the AE lock button (update by pressing the button again) in Fv, P, Tv, Av, and M mode. • Enabled in all metering modes. • Options to cancel locked reading via Customizing Buttons — AE Lock with Hold, or Release AE Lock. |
Shutter
|
Type |
(1) Mechanical (2) Electronic 1st-Curtain (3) Electronic Shutter (1st and 2nd curtain - silent*) • When set to [Electronic], the camera makes no mechanical shutter sound. Shutter volume during Electronic Shutter is adjustable in 5 user-defined steps, plus silent — Set-up Menu #2 > Volume. Electronic Shutter sound is also disabled when Beep is set to Disable — Set-up Menu #2 > Beep. Note that the camera may make sounds other than the shutter release sound, such as sounds for aperture adjustment or the lens focus drive, or beeps. Moreover, using long exposure noise reduction with shutter speeds of 1 sec. or longer involved mechanical shutter, which producers a mechanical sound. • Bands of light may be displayed and captured images may be affected by light and dark banding when shooting under fluorescent lighting or other flickering light sources with the camera set to [Anti-flicker shoot: Disable] • The following settings are available when [Electronic] is set: • Drive mode selection (H / H / L), shooting with an external flash unit, anti-flicker shooting, shutter speed (no low-speed restrictions), long exposure noise reduction, AEB, Multi Shot Noise Reduction, HDR Shooting (HDR PQ), HDR mode, multiple exposures. •M or Tv modes, with Electronic Shutter: user-set shutter speeds extend to 1/64,000 sec. maximum. (Set in full-step increments from 1/8000 to 1/64000). |
|||||||||||
| Shutter Speeds |
• Adjustments by the camera when the shutter speed is set to 1/64000 or 1/32000 sec. in electronic shutter shooting may involve the aperture value or ISO speed in some shooting conditions, because shutter speed cannot be controlled in 1/3- or 1/2-stop increments. • If HDR mode, Focus bracketing, Hi-speed sync, or Same exposure for new aperture is set, max shutter speed limit will be 1/8000 sec. |
|||||||||||
| X-Sync Speed |
Mechanical Shutter: 1/200 sec. Elec. 1st-curtain: 1/250 sec. Electronic Shutter: 1/180 sec. |
|||||||||||
| Shutter Release | Soft-touch electromagnetic release | |||||||||||
| Self Timer | 10-sec. delay, 2-sec. delay | |||||||||||
| Shutter Lag Time |
*The shutter-release time lag is longer in flash photography with anti-flicker shooting. *1: Using RF or EF lenses (except EF-S lenses) *2: At maximum aperture. *3: Using EF-S lenses and electronic 1st-curtain: approx. 45 ms. *4: Using EF-S lenses and the electronic shutter: approx. 35 ms. |
Image Stabilization (IS Mode)
|
Still Photo IS |
In-body IS operation can be selected when using a non-IS lens. • Always on • Only for shot |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 5-Axis Image Stabilization with EF/RF Lenses |
* As of July 2021. Except RF600mm F11 IS STM and RF800mm F11 IS STM |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| EOS R3 Coordinated In-Body Image Stabilizer Still Shooting Performance with RF Lenses |
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||
External Speedlite
|
E-TTL Balance |
E-TTL balance | |||||||||||||||||||
| Compatible E-TTL Speedlites | Canon EX- and EL-series Speedlites | |||||||||||||||||||
| E-TTL II Flash Metering |
(1) Evaluative (Face Priority) (2) Evaluative (3) Average |
|||||||||||||||||||
| Slow Sync (P/AV Modes) |
|
|||||||||||||||||||
| Flash Function Menu | Provided for EX- and EL-series Speedlites | |||||||||||||||||||
| Flash Exposure Compensation | ±3 stops in 1/3- or 1/2-stop increments. Can be set on speedlite, in camera's External Speedlite Control Menu, or on camera body. | |||||||||||||||||||
| Continuous Flash Control |
1. E-TTL each shot (E-TTL flash exposure fixed after first shot in a sequence) 2. E-TTL 1st shot |
|||||||||||||||||||
Drive System
