Specs

Model:

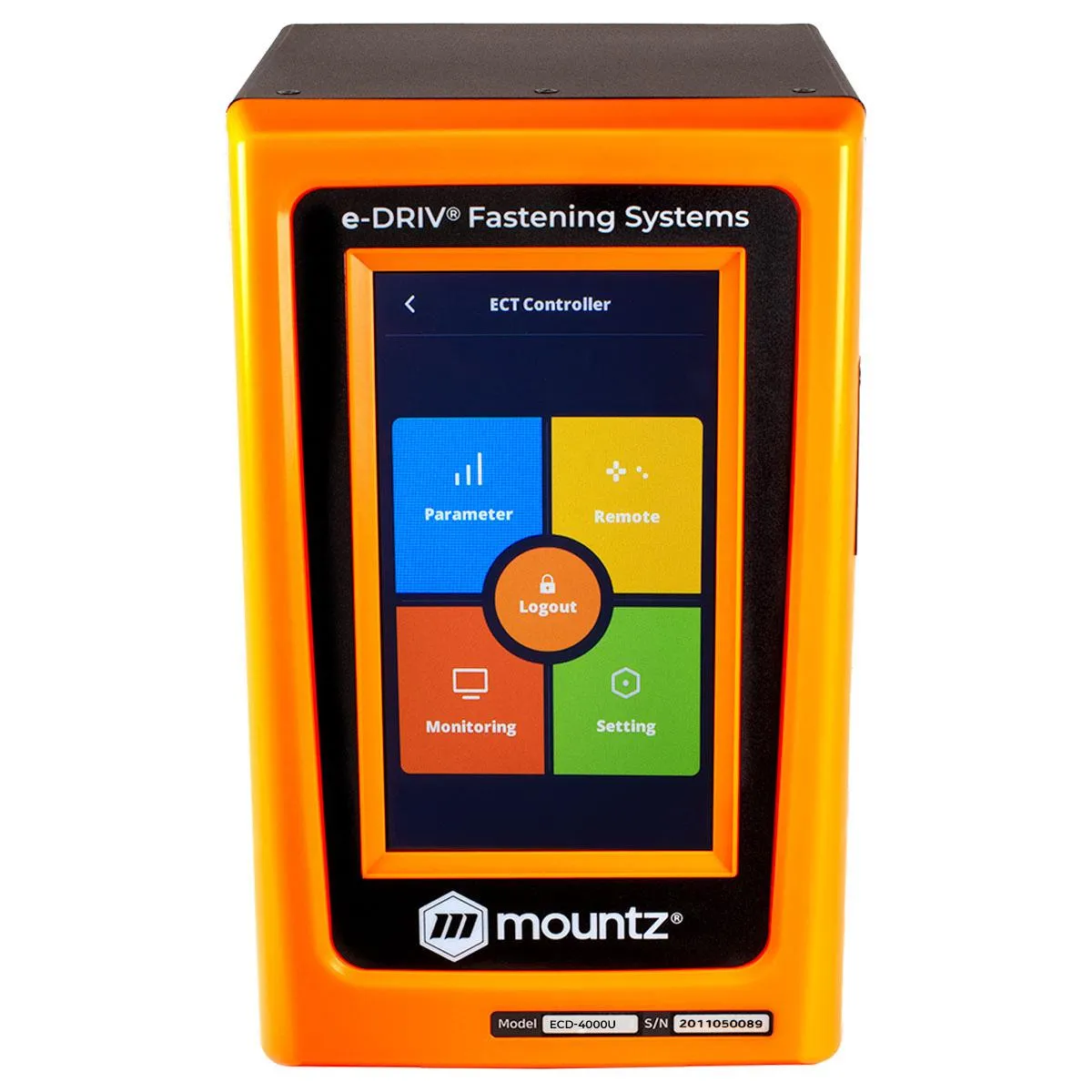

ECD-4000U Controller (120V)

Item #:

313197

Tool Weight:

8.6 lbs.

Tool Length:

Tool Width:

7.5

Tool Height:

10.25

Output VDC:

DC38V 3.5A

Input VAC:

AC120VC, 50-60Hz

The ECD controller operates with only the EC-Series Smart Electric Screwdrivers (40000 models). It is a single tool controller that offers programmable speed, angle, auto-reverse and soft start options. I/O interface for communication with external devices such as PLC.

Operates with Electric Screwdriver Models:
Preset selection capability: Front panel or 25P I/O
Angle Control: 0.1 - 10 turns
15 Preset Parameters: Torque, Speed, Soft Start & Angle
Auto-detection of a connected electric screwdriver when the controller is powered on
Error display: Error code display (3 groups)
Fastening Quality Control: OK/NG monitoring of screw fastening by preset pattern of angle and/or time
PC based program for parameter settings, monitoring, and real-time output
Screw counting
Front panel 7" Color LCD with touch screen
8 Input & 8 Output flexible I/O (25P D-Sub)
Communication 1 x RS232C, 1 x Ethernet
Protocol: Modbus, Open Protocol
4.0 MEMS system ready
SD Card data memory slot (memory card included)
Mounting bracket included
Clean room compliant (ISO14644-1 2015 Class 5)
