STURMEY ARCHER 90mm FRONT DRUM BRAKE HUB BFC 36 SPOKE

This hub from Sturmey Archer incorporates a 90mm drum brake.

Drum brakes are efficient - sealed from the mud and wet of the good old British roads - they will work better than than the average rim brake. They will also last longer as they are shielded from the mud and grit that wears normal brake pads down.

• Hub Shell Material - Steel
• Bearing Type - Loose Ball
• Axle Diameter - 3/8” Slotted (26TPI)
• Axle Length - 136mm
• Over Locknut Dimension - 100mm
• Spoke Holes - 36
• Pitch Circle Diameter - 48.5mm / 102.5mm
• Center to Flange Right - 31.1mm
• Center to Flange Left - 28.3mm
• Flange Width - 57mm
• Spoke Compatibility - 13g or 14g
• Weight – 1020grams (approx)

NEW NEVER EVER USED FACTORY STOCK DO NO RETAIL PACKING INCLUDED

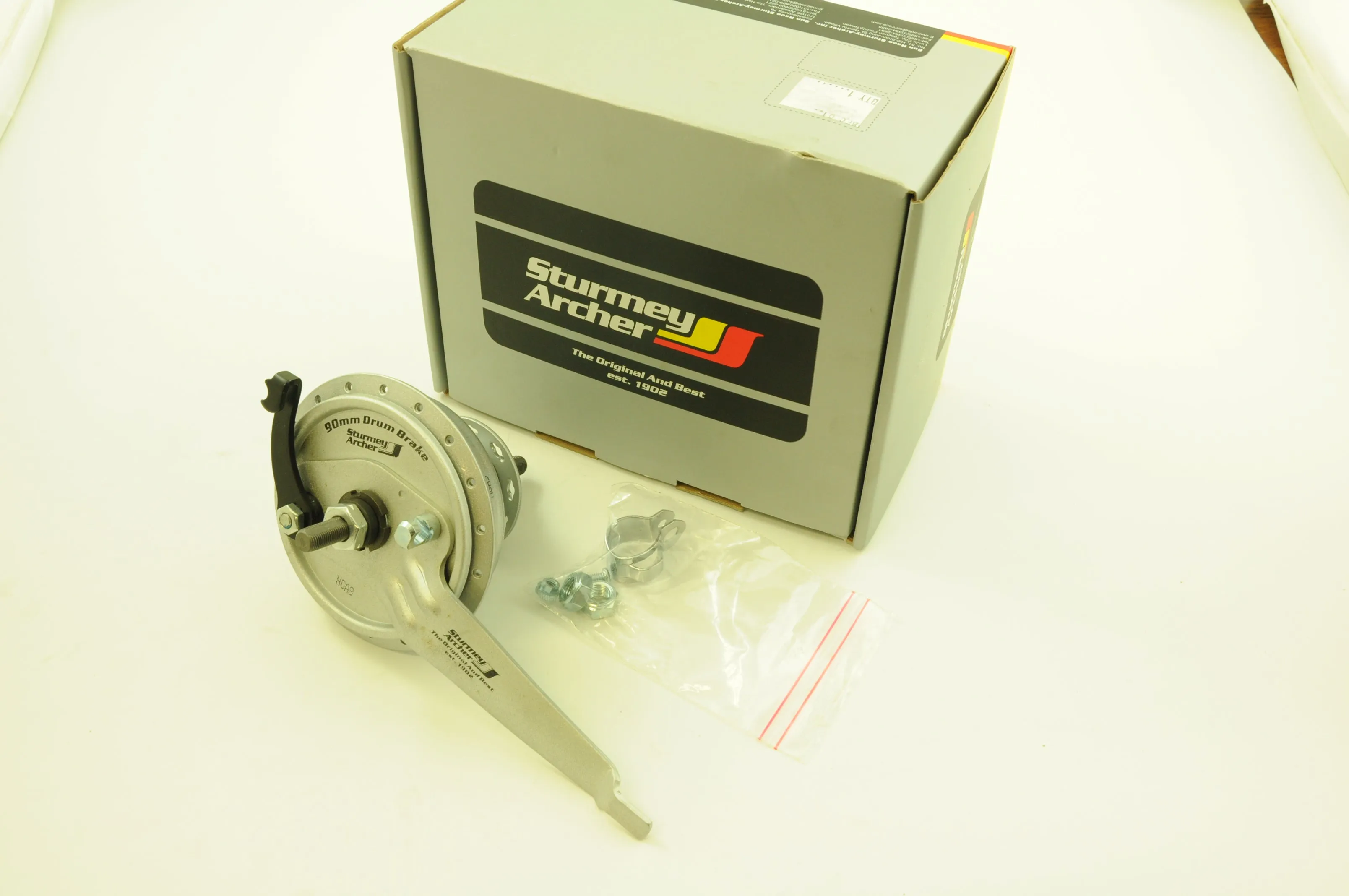

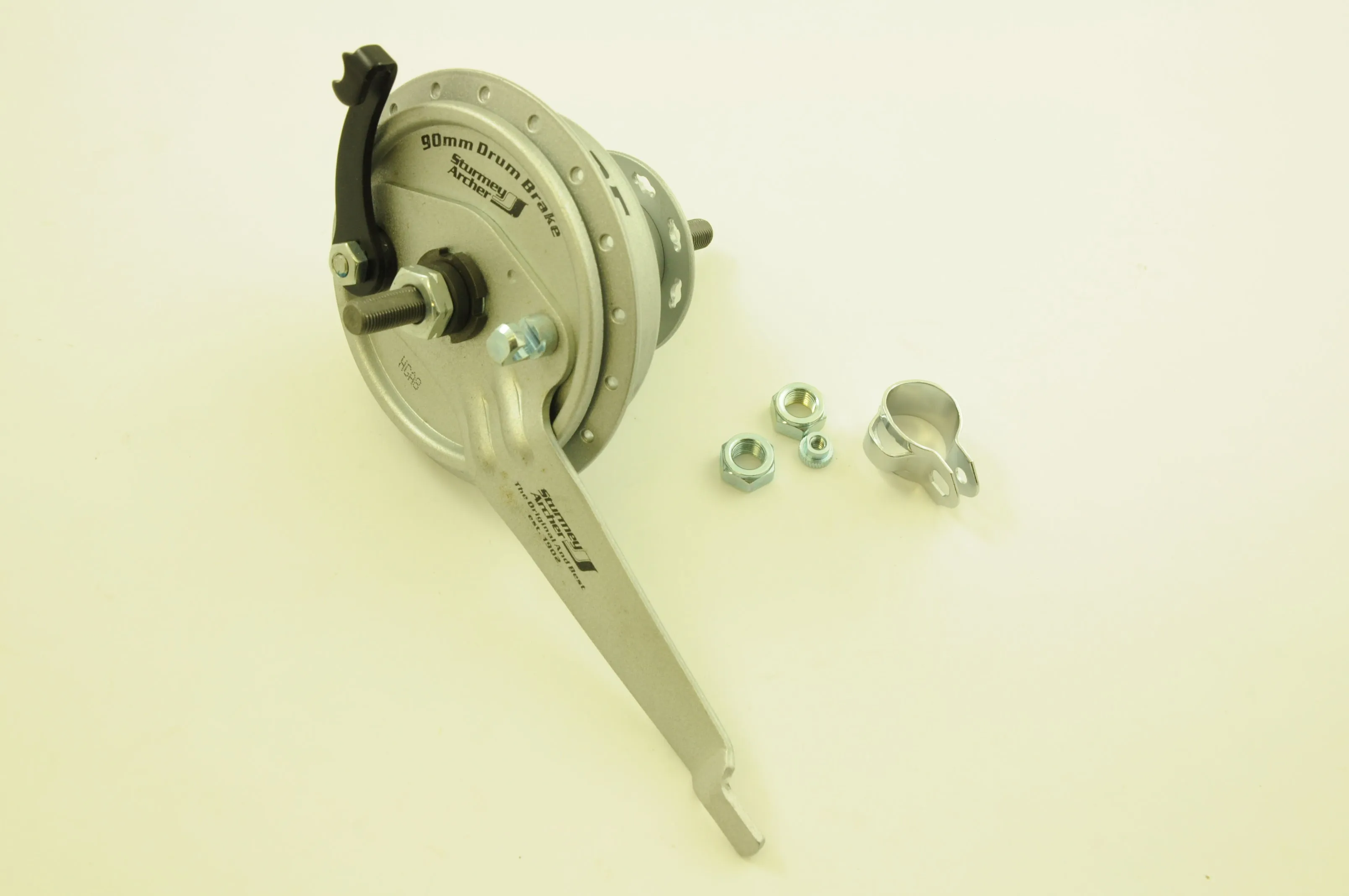

Supplied with fork mounting bracket as shown but parts for cable connection are NOT supplied
